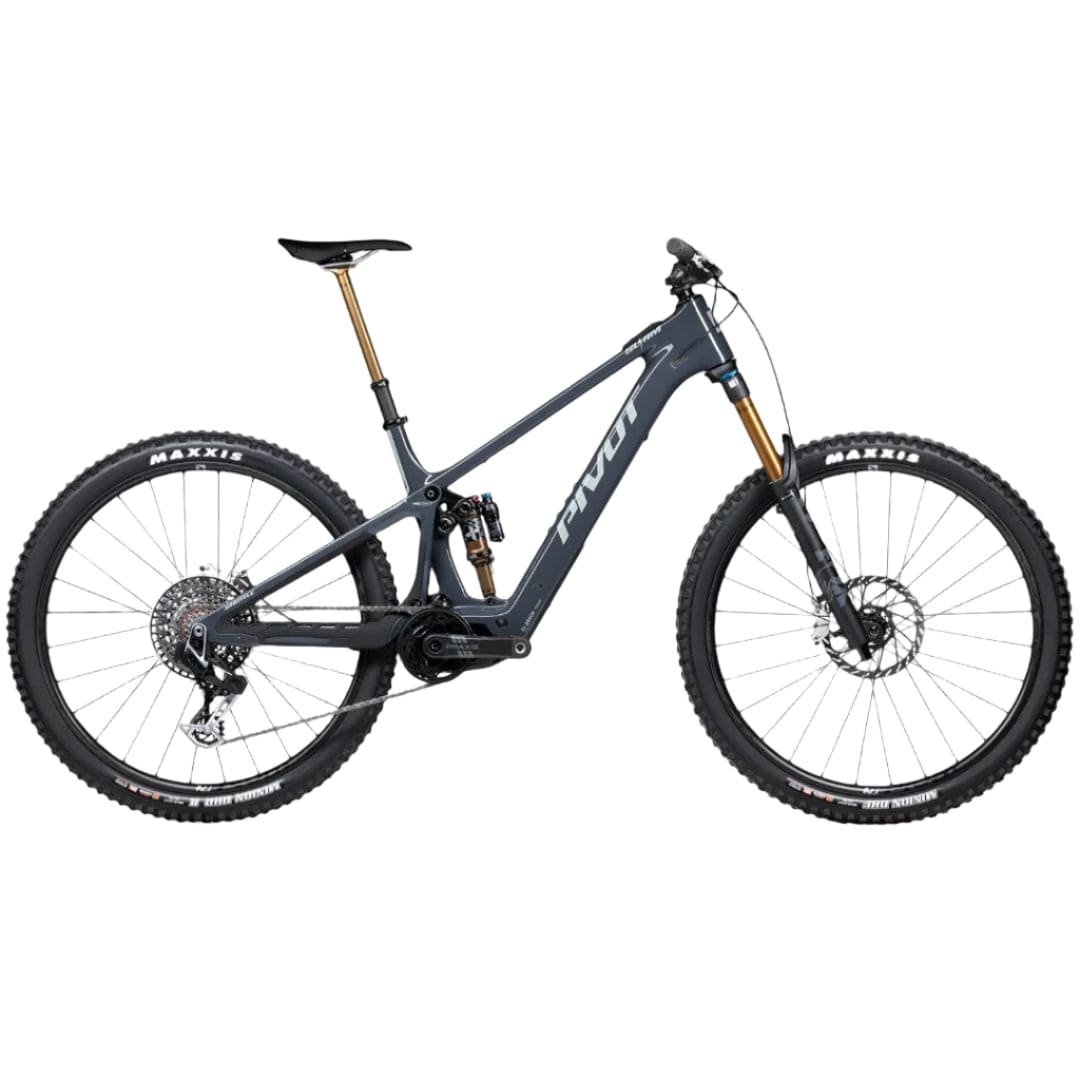

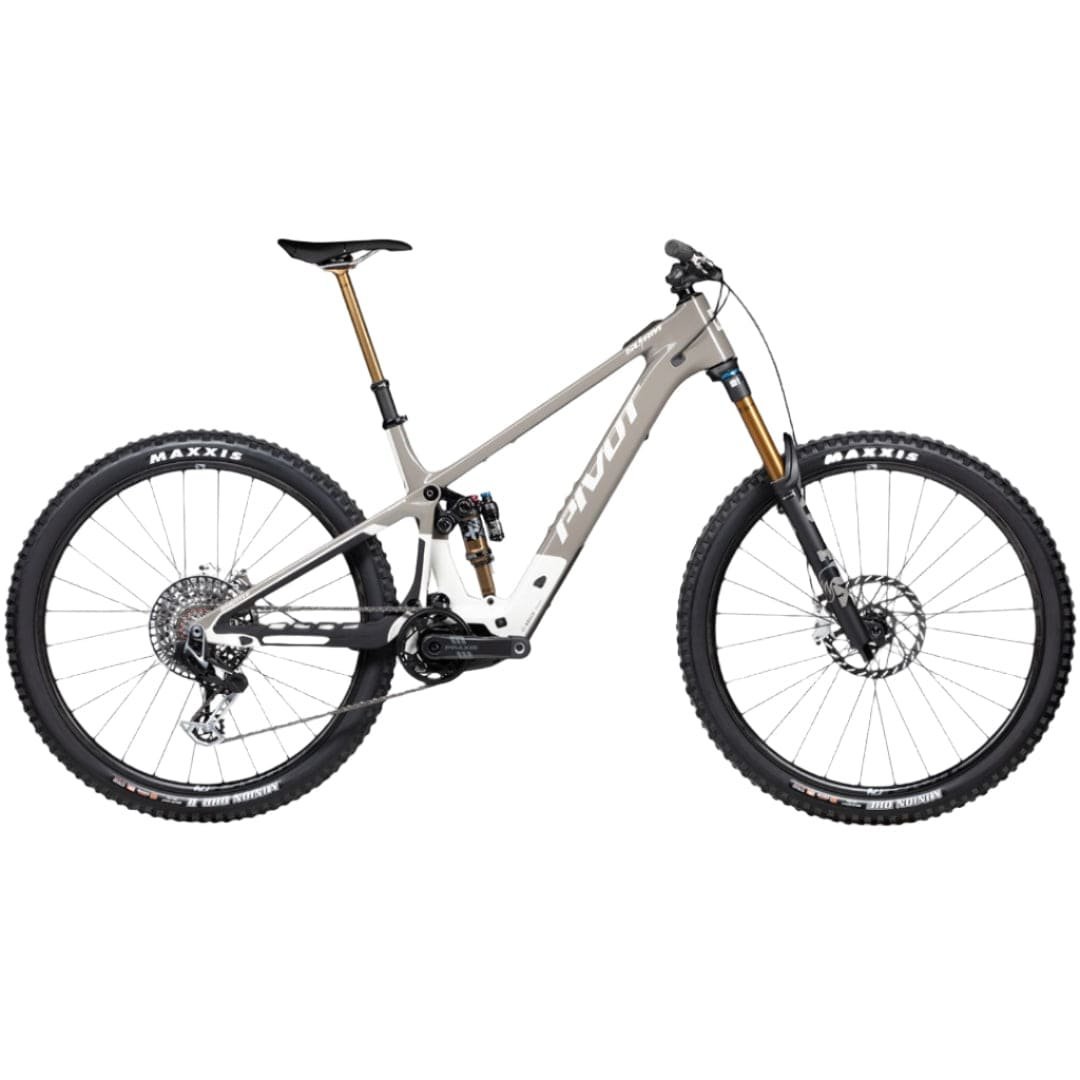

Pivot Shuttle SL AM Pro X0 AXS
$7,500.00
Description
Frame & Suspension
- Full carbon Shuttle SL/AM frame
- 150 mm rear-wheel travel
- 160 mm Fox Factory 36 GRIP X2 fork
- Fox Factory Float X rear shock (sizes S–XL)
- Adjustable geometry via Pivot flip-chip
- Optional mixed-wheel (mullet) configuration on some sizes
Motor & Battery
- Bosch Performance Line SX motor
- 55 Nm torque
- Up to 600 W peak power
- Bosch CompactTube 400 Wh integrated battery
- Compatible with Bosch PowerMore 250 Wh range extender
- Bosch System Controller with Mini Remote
Drivetrain
- SRAM X0 Eagle Transmission (T-Type)
- SRAM AXS Pod electronic controller
- 12-speed wireless shifting
- SRAM X0 10–52T cassette
- SRAM X0 Eagle Flattop chain
- Praxis carbon or alloy e-bike crankset depending on specification year
Brakes
- SRAM Motive Silver 4-piston hydraulic disc brakes
- SRAM HS2 Centerlock rotors
- 200 mm front and rear rotors
Wheels & Tires
- DT Swiss XM1700 wheelset
- DT Swiss 350 hubs
- 30 mm internal rim width
- Maxxis Minion DHF 29 × 2.5″ front
- Maxxis Minion DHR II 29 × 2.4″ rear
Cockpit
- Phoenix Race Low Rise carbon handlebar
- Phoenix Team Enduro/Trail stem (45 mm)
- Fox Transfer Factory dropper post
- SRAM AXS wireless dropper remote
- WTB/Phoenix performance saddle depending on size
